Utilization Bar Card

A Utilization Bar Card displays the utilization for metrics using the Utilization Bar Chart. The most common use case for this pattern is seen in a dashboard.

Jump to Top Left Description and Top Right Label or Left Description and Right Label

Top Left Description and Top Right Label

Top Left Description and Top Right Label

Left Description and Right Label

Left Description and Right Label

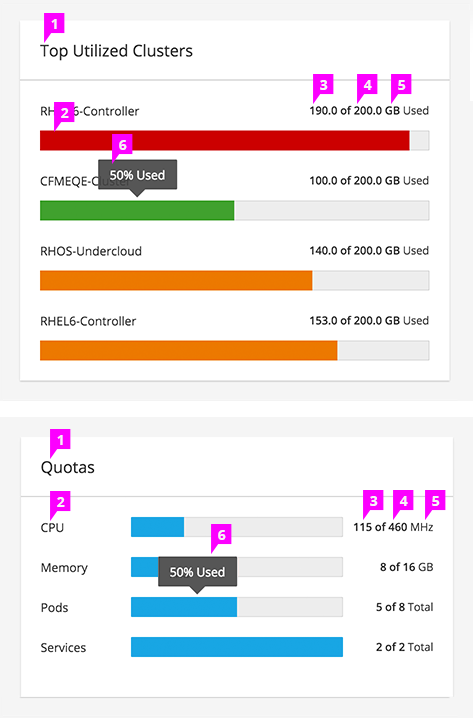

Utilization Bar Card

Title of image

  1. Title: Define a title for the card.

  2. Utilization Bar Chart: See Utilization Bar Chart for more information about the chart’s appearance and behavior.

  3. Used Value: Show a value for amount used.

  4. Total Value: In addition to the used value, it is recommended to show the total value. Show this with the used value (i.e. x of y Used) or provide it in a tooltip.

  5. Unit of Measurement: The label for unit of measurement is shown after the the value.

  6. Tooltip: It is recommend that the percentage used is displayed in a tooltip.

Jump to Top Left Description and Top Right Label or Left Description and Right Label

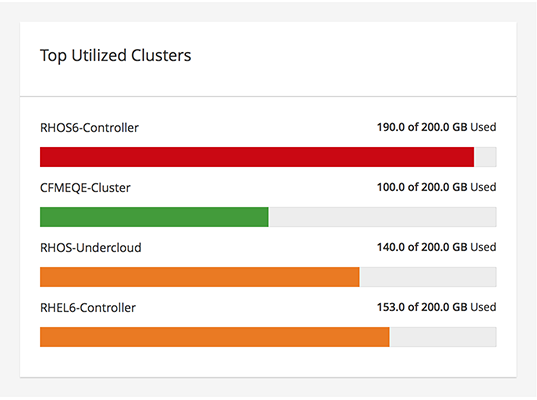

Top Left Description and Top Right Label

Top Utilized Clusters

RHOS6-Controller
190.0 of 200.0 GB Used
5% Available
CFMEQE-Cluster
100.0 of 200.0 GB Used
50% Available
RHOS-Undercloud
140.0 of 200.0 GB Used
30% Available
RHEL6-Controller
153.0 of 200.0 GB Used
23.5% Available

Reference Markup

    <script src="components/c3/c3.min.js"></script>
    <script src="components/d3/d3.min.js"></script>
    <body class="cards-pf">
      ...
      <div class="container-fluid container-cards-pf">
        <div class="row row-cards-pf">
          <div class="col-xs-6 col-sm-4 col-md-4">
            <div class="card-pf">
  <div class="card-pf-heading">
    <h2 class="card-pf-title">
      Top Utilized Clusters
    </h2>
  </div>
  <div class="card-pf-body">
    <div class="progress-description">
      RHOS6-Controller
    </div>
    <div class="progress progress-label-top-right">
      <div class="progress-bar progress-bar-danger" role="progressbar" aria-valuenow="95" aria-valuemin="0" aria-valuemax="100" style="width: 95%;"  data-toggle="tooltip" title="95% Used">
        <span><strong>190.0 of 200.0 GB</strong> Used</span>
      </div>
      <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="5" aria-valuemin="0" aria-valuemax="100" style="width: 5%;" data-toggle="tooltip" title="5% Available">
        <span class="sr-only">5% Available</span>
      </div>
    </div>
    <div class="progress-description">
      CFMEQE-Cluster
    </div>
    <div class="progress progress-label-top-right">
      <div class="progress-bar progress-bar-success" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;"  data-toggle="tooltip" title="50% Used">
        <span><strong>100.0 of 200.0 GB</strong> Used</span>
      </div>
      <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Available">
        <span class="sr-only">50% Available</span>
      </div>
    </div>
    <div class="progress-description">
      RHOS-Undercloud
    </div>
    <div class="progress progress-label-top-right">
      <div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="70" aria-valuemin="0" aria-valuemax="100" style="width: 70%;"  data-toggle="tooltip" title="70% Used">
        <span><strong>140.0 of 200.0 GB</strong> Used</span>
      </div>
      <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="30" aria-valuemin="0" aria-valuemax="100" style="width: 30%;" data-toggle="tooltip" title="30% Available">
        <span class="sr-only">30% Available</span>
      </div>
    </div>
    <div class="progress-description">
      RHEL6-Controller
    </div>
    <div class="progress progress-label-top-right">
      <div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="76.5" aria-valuemin="0" aria-valuemax="100" style="width: 76.5%;"  data-toggle="tooltip" title="76.5% Used">
        <span><strong>153.0 of 200.0 GB</strong> Used</span>
      </div>
      <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="23.5" aria-valuemin="0" aria-valuemax="100" style="width: 23.5%;" data-toggle="tooltip" title="23.5% Available">
        <span class="sr-only">23.5% Available</span>
      </div>
    </div>
  </div>
</div>

          </div>
        </div><!-- /row -->
      </div><!-- /container -->
    </body>

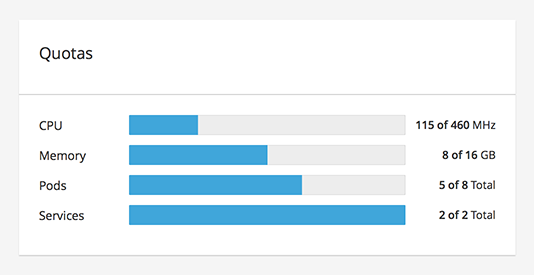

Left Description and Right Label

Quotas

CPU
115 of 460 MHz
75% Available
Memory
8 of 16 GB
50% Available
Pods
5 of 8 Total
37.5% Available
Services
2 of 2 Total

Reference Markup

    <script src="components/c3/c3.min.js"></script>
    <script src="components/d3/d3.min.js"></script>
    <body class="cards-pf">
      ...
      <div class="container-fluid container-cards-pf">
        <div class="row row-cards-pf">
          <div class="col-xs-6 col-sm-4 col-md-4">
            <div class="card-pf">
  <div class="card-pf-heading">
    <h2 class="card-pf-title">
      Quotas
    </h2>
  </div>
  <div class="card-pf-body">
    <div class="progress-container progress-description-left progress-label-right">
      <div class="progress-description">
        CPU
      </div>
      <div class="progress">
        <div class="progress-bar" role="progressbar" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100" style="width: 25%;" data-toggle="tooltip" title="25% Used">
          <span><strong>115 of 460</strong> MHz</span>
        </div>
        <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100" style="width: 75%;" data-toggle="tooltip" title="75% Available">
          <span class="sr-only">75% Available</span>
        </div>
      </div>
    </div>
    <div class="progress-container progress-description-left progress-label-right">
      <div class="progress-description">
        Memory
      </div>
      <div class="progress">
        <div class="progress-bar" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Used">
          <span><strong>8 of 16</strong> GB</span>
        </div>
        <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Available">
          <span class="sr-only">50% Available</span>
        </div>
      </div>
    </div>
    <div class="progress-container progress-description-left progress-label-right">
      <div class="progress-description">
        Pods
      </div>
      <div class="progress">
        <div class="progress-bar" role="progressbar" aria-valuenow="62.5" aria-valuemin="0" aria-valuemax="100" style="width: 62.5%;" data-toggle="tooltip" title="62.5% Used">
          <span><strong>5 of 8</strong> Total</span>
        </div>
        <div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="37.5" aria-valuemin="0" aria-valuemax="100" style="width: 37.5%;" data-toggle="tooltip" title="37.5% Available">
          <span class="sr-only">37.5% Available</span>
        </div>
      </div>
    </div>
    <div class="progress-container progress-description-left progress-label-right">
      <div class="progress-description">
        Services
      </div>
      <div class="progress">
        <div class="progress-bar" role="progressbar" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100" style="width: 100%;" data-toggle="tooltip" title="100% Used">
          <span><strong>2 of 2</strong> Total</span>
        </div>
      </div>
    </div>
  </div>
</div>

          </div>
        </div><!-- /row -->
      </div><!-- /container -->
    </body>
