Horizontal Navigation
It is recommended to use horizontal navigation when your application requires global navigation that is displayed always at the top. The horizontal navigation pattern supports up to two levels of navigation( Primary and Secondary).
- Primary level navigation - The primary level navigation should always be exposed.
- Secondary navigation - The secondary level can either be persistent or hidden within drop-down menus. The latter provides less visibility to lower-level categories but saves vertical screen space.
As a rule of thumb, the horizontal navigation is the preferred choice over Vertical Navigation when:
- There are a small number of fixed categories. You want to provide the best visibility to primary categories by placing them immediately below the page header area.
- Consider using Vertical Navigation if you need a solution that can easily scale for a large amount of menu items and easily adapt to small screen sizes.
- Horizontal menus can also be made responsive but it usually requires a transformation from horizontal to vertical. Since vertical menus are already in this format, the transition from desktop to mobile is less disorienting.
When using this pattern with the Notification Drawer, it is recommended to use the sticky horizontal navigation so that the navigation and notification drawer stick to the top of the page on scroll.
Jump to Masthead Design, Standard Horizontal Navigation, or Navbar Variations.
Masthead Design
The horizontal navigation is recommended to use the the short masthead in order to reduce the vertical real estate.
Standard Horizontal Navigation
Navbar Variations

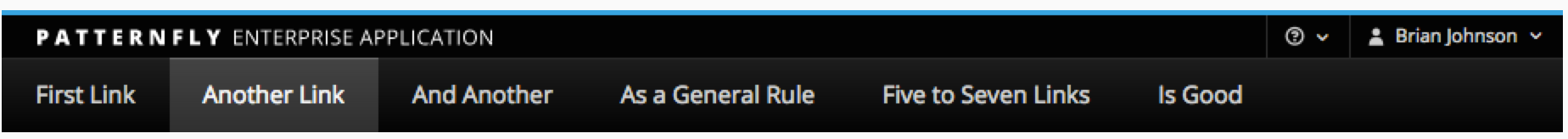

Single-Level Menu Bar

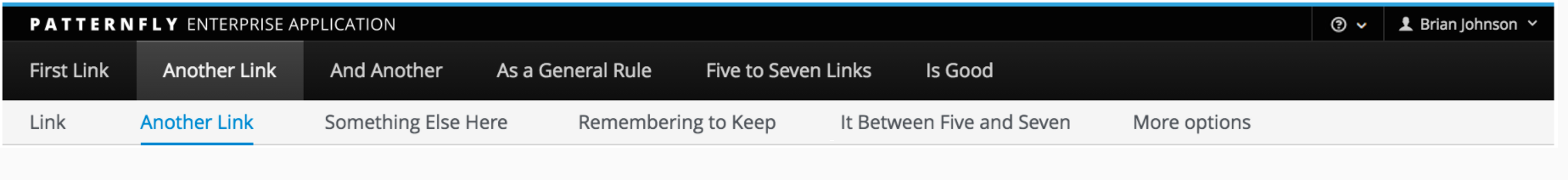

Two-Level Menu Bar

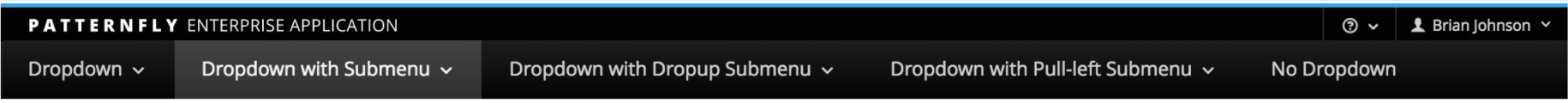

Menu Bar with Drop-Downs
Jump to Masthead Design, Single-Level Menu Bar, Two-Level Menu Bar, or Menu Bar with Drop-Downs.
Masthead Design
There are two options for the Masthead design, one short option to save space and one tall option to accommodate for larger product logos. The short masthead option is recommended when using horizontal navigation.

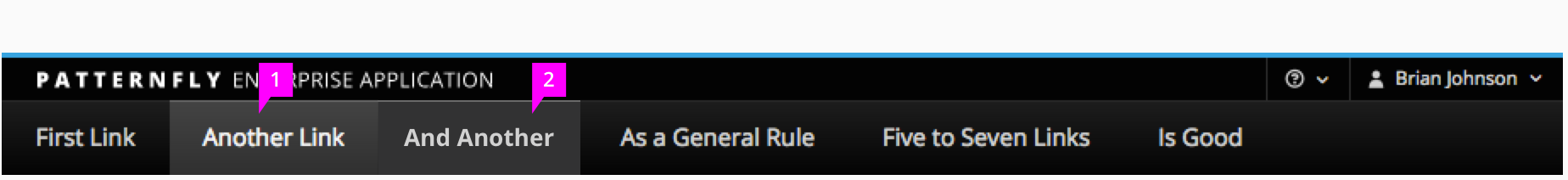

Single-Level Menu Bar
The Single-Level Menu Bar is the default navbar, all other options are added to this basic pattern.
- Menu Item - Selected: The current selection will be highlighted to indicate the current page. There will be a current selection at all times. When an application is opened, the first (left-most) item will be selected by default.
- Menu Item - On-Hover: Hover state provides feedback that menu items are active.

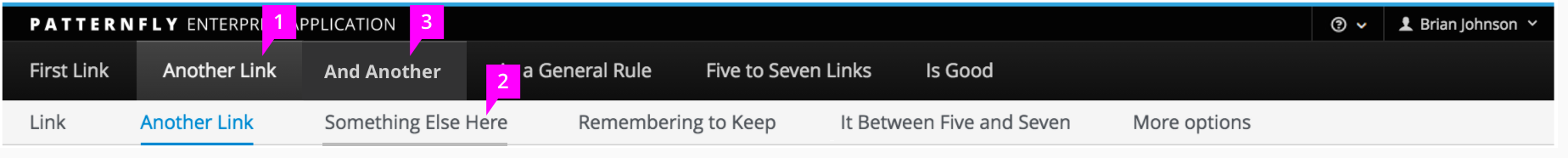

Two-Level Menu Bar
When a second level of persistent navigation is needed, add a second tier of links.
- Secondary Menu Item Selected: Show the selected state of both the primary and secondary menu items to tell the user where they are in the hierarchy. By default the first (left-most) item in both menus is selected.
- Secondary Menu Item On-Hover: Hover state provides feedback that menu items are active.
- Primary Menu Item On Hover: When the user hovers over a new primary menu item, the contents of the secondary menu will update to display secondary menu options associated with this item.

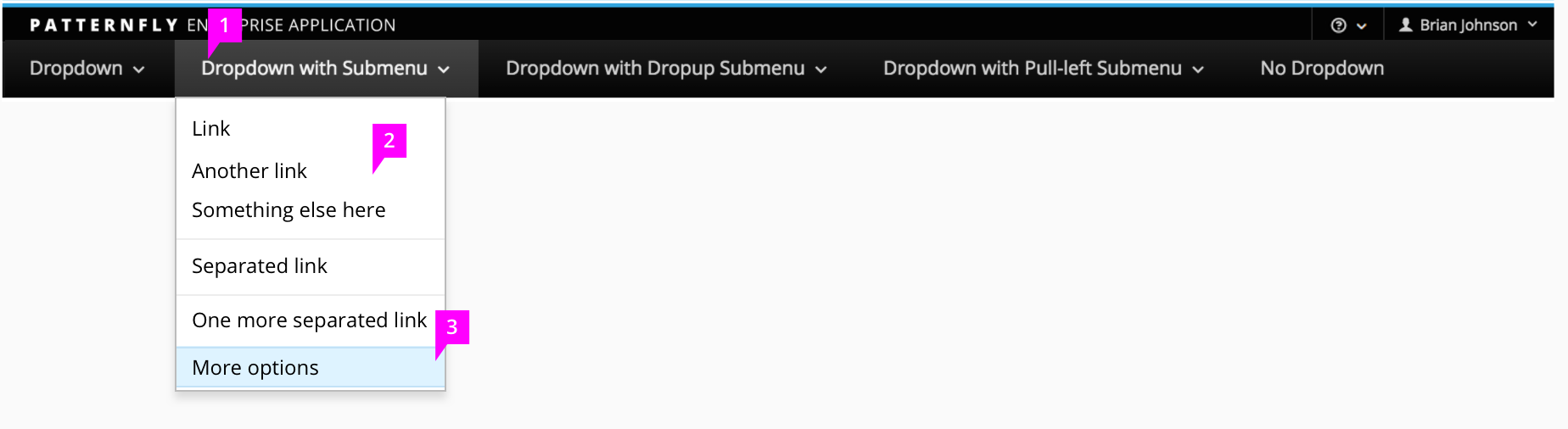

Menu Bar with Drop-Downs
Add a drop-down menu to a single menu bar to expose a vertical list of sub-categories that the user can select from. Note that when drop-down menus are used, all categories are not required to have secondary navigation. The drop-down menus only support up to two levels of navigation. If you need the tertiary navigation, Vertical Navigation is the preferred choice over horizontal navigation.
- Primary Menu Item: Any primary item that supports a secondary level of navigation will add a down-caret icon to indicate that a drop-down menu exists. The primary item will display its selected state when any secondary page within that branch is selected. This will provide the user feedback about which primary section they are working in. When an application is initially opened, the first secondary page within the first section will be opened, by default.
- Drop-Down Menu: Single-clicking a primary item opens the drop down. Clicking anywhere outside of the menu will dismiss it.
- Drop-Down Menu On Hover and Selected: The drop-down menu items have hover and selected states. Hover state provides feedback that menu items are active. Clicking this item navigates to a new page and dismisses the menu.
Jump to Standard Horizontal Navigation, Single-Level Menu Bar, Two-Level Menu Bar, or Menu Bar with Drop-Downs
Standard Horizontal Navigation
<script src="components/c3/c3.min.js"></script>
<script src="components/d3/d3.min.js"></script>
<script src="components/jquery-match-height/dist/jquery.matchHeight-min.js"></script>
<nav class="navbar navbar-default navbar-pf" role="navigation">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse-1">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="/">
<img src="/patternfly-org/assets/img/brand.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<div class="collapse navbar-collapse navbar-collapse-1">
<ul class="nav navbar-nav navbar-utility">
<li class="dropdown">
<a href="#0" class="nav-item-iconic" id="horizontalDropdownMenu1" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="horizontalDropdownMenu1">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
<span class="pficon pficon-user"></span>
Brian Johnson <b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-header">Nav header</li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
<ul class="nav navbar-nav navbar-primary">
<li>
<a href="#0">First Link</a>
</li>
<li class="active">
<a href="#0">Another Link</a>
</li>
<li>
<a href="#0">And Another</a>
</li>
<li>
<a href="#0">As a General Rule</a>
</li>
<li>
<a href="#0">Five to Seven Links</a>
</li>
<li>
<a href="#0">Is Good</a>
</li>
</ul>
</div>
</nav>
<div class="container-fluid container-cards-pf">
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">20</span> Amet</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-warning-triangle-o"></span>1</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">9</span> Adipiscing</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">12</span> Lorem</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<span class="fa fa-rebel"></span>
<span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="fa fa-paper-plane"></span>
<span class="card-pf-aggregate-status-count">20</span> Amet
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-cluster"></span>
<span class="card-pf-aggregate-status-count">9</span> Adipiscing
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-image"></span>
<span class="card-pf-aggregate-status-count">12</span> Lorem
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Top Utilized Clusters
</h2>
</div>
<div class="card-pf-body">
<div class="progress-description">
RHOS6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-danger" role="progressbar" aria-valuenow="95" aria-valuemin="0" aria-valuemax="100" style="width: 95%;" data-toggle="tooltip" title="95% Used">
<span><strong>190.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="5" aria-valuemin="0" aria-valuemax="100" style="width: 5%;" data-toggle="tooltip" title="5% Available">
<span class="sr-only">5% Available</span>
</div>
</div>
<div class="progress-description">
CFMEQE-Cluster
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-success" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Used">
<span><strong>100.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Available">
<span class="sr-only">50% Available</span>
</div>
</div>
<div class="progress-description">
RHOS-Undercloud
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="70" aria-valuemin="0" aria-valuemax="100" style="width: 70%;" data-toggle="tooltip" title="70% Used">
<span><strong>140.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="30" aria-valuemin="0" aria-valuemax="100" style="width: 30%;" data-toggle="tooltip" title="30% Available">
<span class="sr-only">30% Available</span>
</div>
</div>
<div class="progress-description">
RHEL6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="76.5" aria-valuemin="0" aria-valuemax="100" style="width: 76.5%;" data-toggle="tooltip" title="76.5% Used">
<span><strong>153.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="23.5" aria-valuemin="0" aria-valuemax="100" style="width: 23.5%;" data-toggle="tooltip" title="23.5% Available">
<span class="sr-only">23.5% Available</span>
</div>
</div>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Quotas
</h2>
</div>
<div class="card-pf-body">
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
CPU
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100" style="width: 25%;" data-toggle="tooltip" title="25% Used">
<span><strong>115 of 460</strong> MHz</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100" style="width: 75%;" data-toggle="tooltip" title="75% Available">
<span class="sr-only">75% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Memory
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Used">
<span><strong>8 of 16</strong> GB</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Available">
<span class="sr-only">50% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Pods
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="62.5" aria-valuemin="0" aria-valuemax="100" style="width: 62.5%;" data-toggle="tooltip" title="62.5% Used">
<span><strong>5 of 8</strong> Total</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="37.5" aria-valuemin="0" aria-valuemax="100" style="width: 37.5%;" data-toggle="tooltip" title="37.5% Available">
<span class="sr-only">37.5% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Services
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100" style="width: 100%;" data-toggle="tooltip" title="100% Used">
<span><strong>2 of 2</strong> Total</span>
</div>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-md-12">
<div class="card-pf card-pf-utilization">
<div class="card-pf-heading">
<p class="card-pf-heading-details">Last 30 days</p>
<h2 class="card-pf-title">
Utilization
</h2>
</div>
<div class="card-pf-body">
<div class="row">
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">CPU</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">50</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1000 MHz</span>
</span>
</p>
<div id="chart-pf-donut-1"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-1"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-1';
donutConfig.color = {
pattern: ["#cc0000","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 95],
["Available", 5]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' MHz ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-1").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("950").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("MHz Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-1';
sparklineConfig.data = {
columns: [
['%', 10, 50, 28, 20, 31, 27, 60, 36, 52, 55, 62, 68, 69, 88, 74, 88, 95],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Memory</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">256</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 432 GB</span>
</span>
</p>
<div id="chart-pf-donut-2"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-2"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-2';
donutConfig.color = {
pattern: ["#3f9c35","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 41],
["Available", 59]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' GB ' + d[0].name +
'</span>';
}
};
var chart3 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-2").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("176").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("GB Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-2';
sparklineConfig.data = {
columns: [
['%', 35, 36, 20, 30, 31, 22, 44, 36, 40, 41, 55, 52, 48, 48, 50, 40, 41],
],
type: 'area'
};
var chart4 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Network</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-3"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-3"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-3';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart5 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-3").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-3';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart6 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-xs-12 col-sm-4 col-md-4">
<div class="card-pf card-pf-utilization">
<h2 class="card-pf-title">
Network
</h2>
<div class="card-pf-body">
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-4"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-4"></div>
<script>
var c3ChartDefaults = $().c3ChartDefaults();
var donutConfig = c3ChartDefaults.getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-4';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-4").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = c3ChartDefaults.getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-4';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-5">
<div class="card-pf">
<div class="card-pf-heading">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<h2 class="card-pf-title">
Card Title
</h2>
</div>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-add-circle-o"></span>Add New Cluster
</a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-5 col-md-5">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-flag"></span>View CPU Events
</a>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-7 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-8 col-md-8">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-4 col-md-4">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div><!-- /row -->
</div>
<script>
$(document).ready(function() {
// matchHeight the contents of each .card-pf and then the .card-pf itself
$(".row-cards-pf > [class*='col'] > .card-pf .card-pf-title").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-body").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-footer").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf").matchHeight();
// initialize tooltips
$('[data-toggle="tooltip"]').tooltip();
// Initialize the vertical navigation
$().setupVerticalNavigation(true);
});
</script>
Single-Level Menu Bar
<nav class="navbar navbar-default navbar-pf" role="navigation">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse-1">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="/">
<img src="/patternfly-org/assets/img/brand.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<div class="collapse navbar-collapse navbar-collapse-1">
<ul class="nav navbar-nav navbar-utility">
<li class="dropdown">
<a href="#0" class="nav-item-iconic" id="horizontalDropdownMenu1" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="horizontalDropdownMenu1">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
<span class="pficon pficon-user"></span>
Brian Johnson <b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-header">Nav header</li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
<ul class="nav navbar-nav navbar-primary">
<li>
<a href="#0">First Link</a>
</li>
<li class="active">
<a href="#0">Another Link</a>
</li>
<li>
<a href="#0">And Another</a>
</li>
<li>
<a href="#0">As a General Rule</a>
</li>
<li>
<a href="#0">Five to Seven Links</a>
</li>
<li>
<a href="#0">Is Good</a>
</li>
</ul>
</div>
</nav>
Two-Level Menu Bar
<nav class="navbar navbar-default navbar-pf" role="navigation">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse-11">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="/">
<img src="/patternfly-org/assets/img/brand.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<div class="collapse navbar-collapse navbar-collapse-11">
<ul class="nav navbar-nav navbar-utility">
<li class="dropdown">
<a href="#0" class="nav-item-iconic" id="dropdownMenu2" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu2">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
<span class="pficon pficon-user"></span>
Brian Johnson
<b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-header">Nav header</li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
<ul class="nav navbar-nav navbar-primary persistent-secondary">
<li>
<a href="#0">First Link</a>
</li>
<li class="active">
<a href="#0">Another Link</a>
<ul class="nav navbar-nav navbar-persistent">
<li class="dropdown-submenu">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">Link</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li>
<a href="#0">Remembering to keep</a>
</li>
<li>
<a href="#0">It between five and seven</a>
</li>
</ul>
</li>
<li class="active">
<a href="#0">Another Link</a>
</li>
<li class="dropdown-submenu">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">Something Else Here</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li>
<a href="#0">Remembering to keep</a>
</li>
<li>
<a href="#0">It between five and seven</a>
</li>
</ul>
</li>
<li>
<a href="#0">Remembering to Keep</a>
</li>
<li>
<a href="#0">It Between Five and Seven</a>
</li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0" class="dropdown-toggle" data-toggle="dropdown">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li>
<a href="#0">Remembering to keep</a>
</li>
<li>
<a href="#0">It between five and seven</a>
</li>
</ul>
</li>
</ul>
</li>
<li>
<a href="#0">And Another</a>
</li>
<li>
<a href="#0">As a General Rule</a>
</li>
<li>
<a href="#0">Five to Seven Links</a>
</li>
<li>
<a href="#0">Is Good</a>
</li>
</ul>
</div>
</nav>
Menu Bar with Drop-Downs
<nav class="navbar navbar-default navbar-pf" role="navigation">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse-5">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="/">
<img src="/patternfly-org/assets/img/brand.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<div class="collapse navbar-collapse navbar-collapse-5">
<ul class="nav navbar-nav navbar-utility">
<li class="dropdown">
<a href="#0" class="nav-item-iconic" id="dropdownMenu1" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu1">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
<span class="pficon pficon-user"></span>
Brian Johnson
<b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-header">Nav header</li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
<ul class="nav navbar-nav navbar-primary">
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
Dropdown
<b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="dropdown active">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
Dropdown with Submenu
<b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
Dropdown with Dropup Submenu
<b class="caret"></b>
</a>
<ul class="dropdown-menu dropup">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
Dropdown with Pull-left Submenu
<b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
<li class="dropdown-submenu pull-left">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
</li>
<li>
<a href="#0">No Dropdown</a>
</li>
</ul>
</div>
</nav>
