Notification Drawer
The Notification Drawer is a content delivery system such as events, tasks, and alerts. It is a self contained system that is viewable without having to navigate to another area of the application. Upon login it offers initial notifications for what has changed in the form of dismissible Toast Notifications and a permanent interactive icon in the header bar. It is hidden or revealed at the user’s request.
Jump to Vertical Navigation or Horizontal Navigation.
Vertical Navigation
Horizontal Navigation

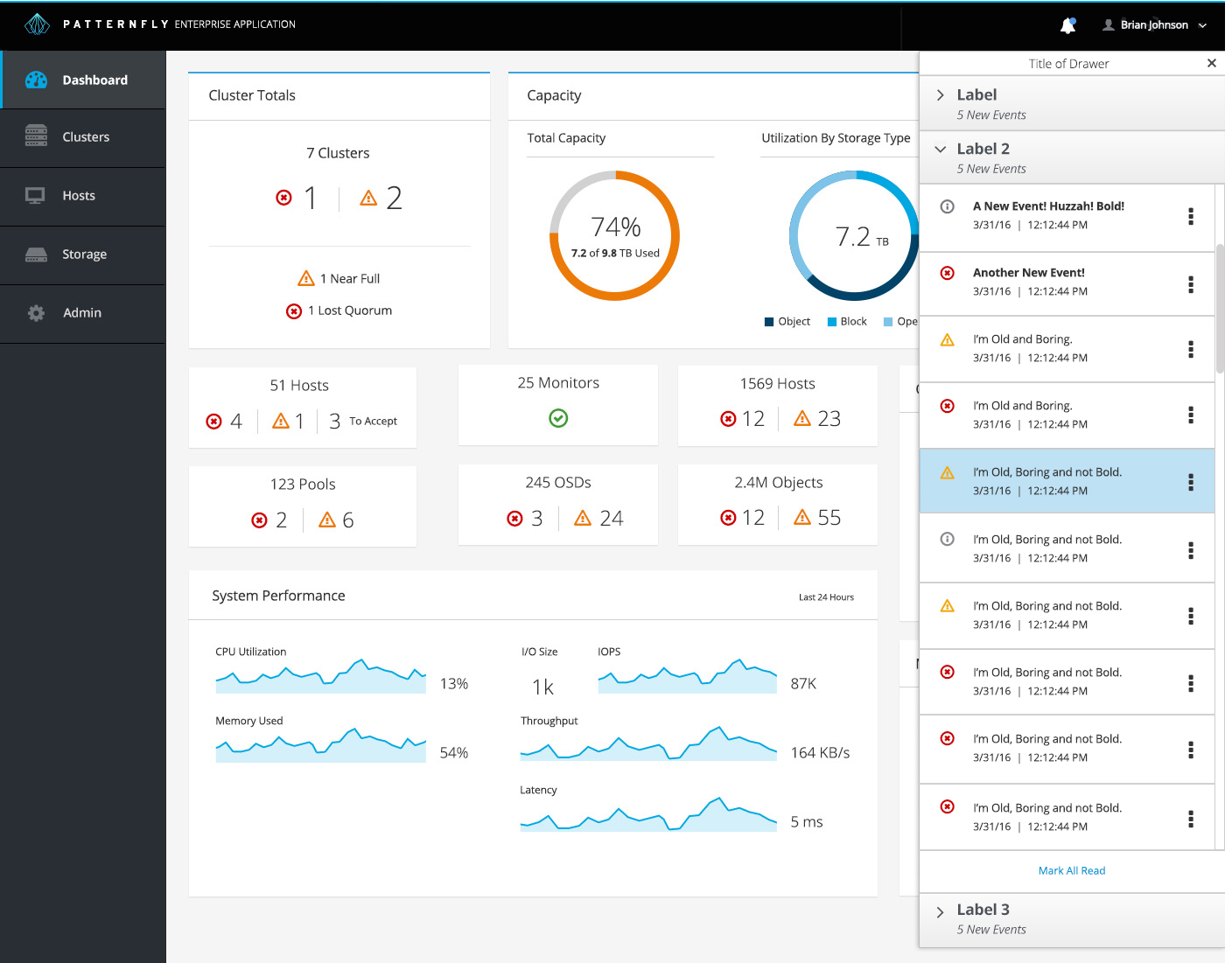

Notification Drawer
Jump to Toast Notification, Notification Drawer, Expand Behavior, or Notification Drawer | Responsive State

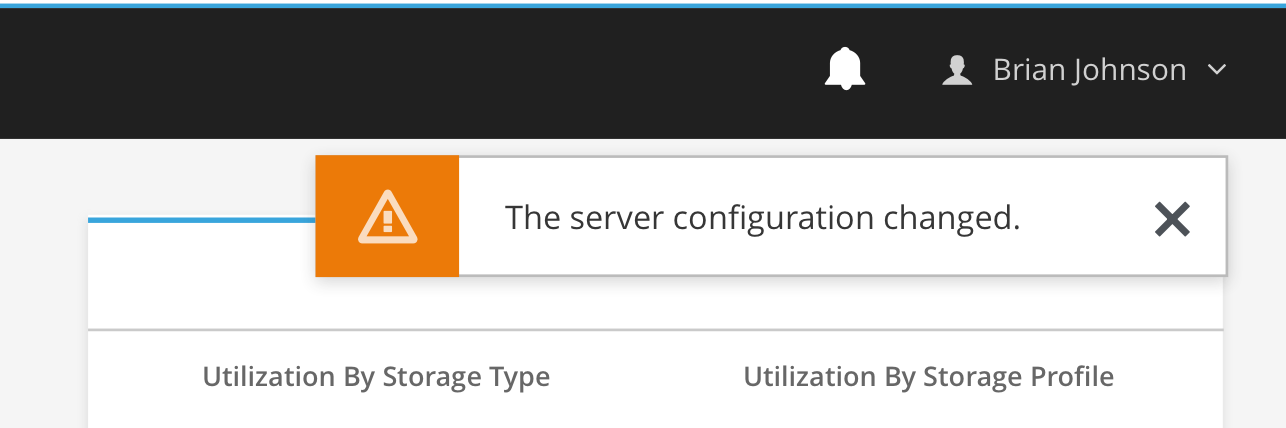

Toast Notification
- Toast Notification: The drawer should utilize the current Toast Notification. The notification shows the title and an optional content-relevant icon.

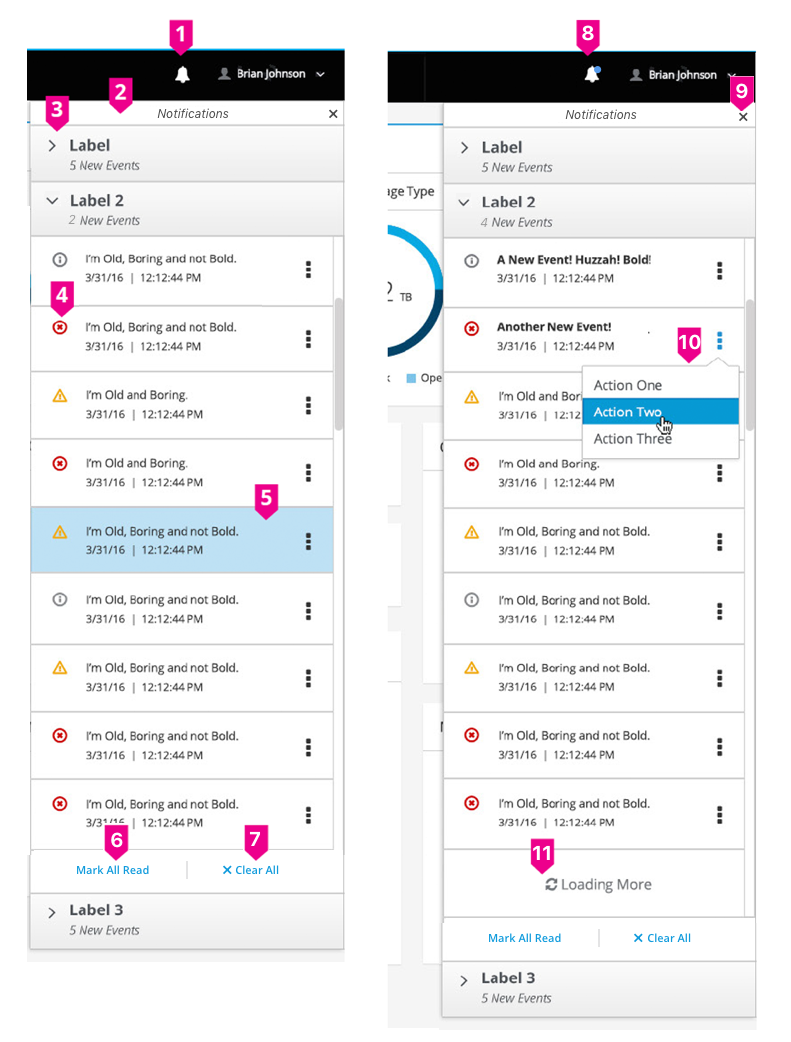

Notification Drawer
- Icon:
- The fa-bell icon should be used to represent the notification drawer.
- Clicking on the icon will open a drawer from the top of the page.
- Clicking on the icon again will close the drawer.
- Drawer Title: Title of Drawer.
- Accordion: Only one notification tab may be opened at a given time -maximizing drawer space. Italicized text will indicate number of new events. Clicking on the title will expand accordion.
- Row:
- Example content shows relevant icon creating a visual differentiator between content severity or object type.
- New/unread notifications are shown in bold.
- Clicking on a row will remove the bold text and the item will be marked as “read.”
- Row Hover State: Example of hover state.
- Mark All Read (Optional): Clicking “Mark All Read” changes all visible unread rows (bold row type) to read (regular row type).
- Clear All (Optional): Clicking “Clear All” removes all visible rows from the drawer.
- Note: This option may be used differently across products.
- Some rows may not be eligible for clearing and should be determined on a case by case basis.
- This link may be hidden as needed.
- Badge: A blue badge will appear in the top right corner of the bell icon when new/unread notifications are present.
- Close: A close icon should be shown in the top right corner of the drawer, providing another method for closing the drawer.
- Row Actions: Clicking on the Kabob menu will reveal a drop down containing actions for that item.
- Infinite Scroll: Infinite scroll reduces need to identify time range on accordion tab. Allows for free-range historical search of notifications.
Expand Behavior | Optional
The notification drawer has the ability to expand in order to view additional details regarding an event. The expand drawer functionality is optional. Use of this feature will depend on the amount of information available.
- Collapsed Drawer: The expand icon is in the top left corner of the notification drawer and is shown as a link to expand the drawer.
- Expanded Drawer: Individual rows may include additional information when in the expanded state. The collapse icon is in the top left corner of the notification drawer and is shown as a link. All other notification drawer features should remain the same as the collapsed view.

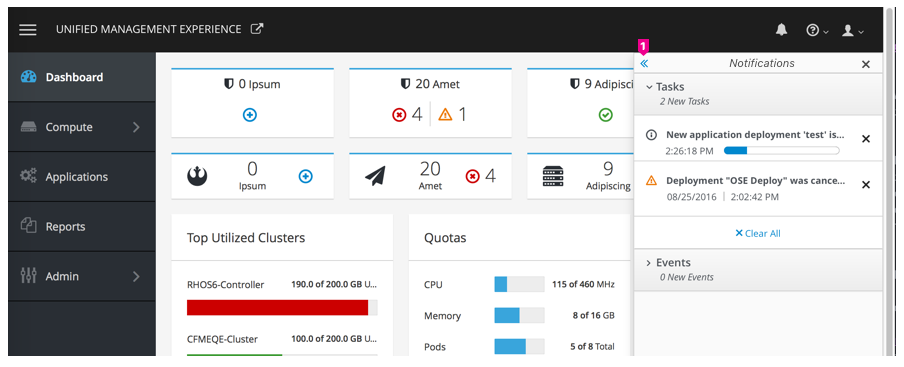

Collapsed Drawer

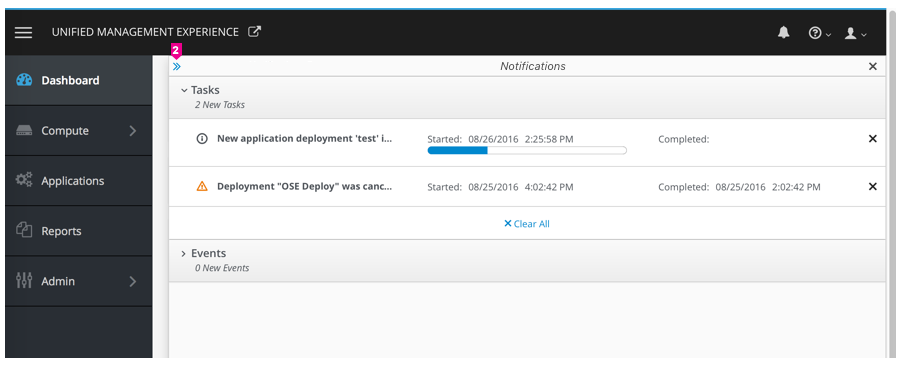

Expanded Drawer

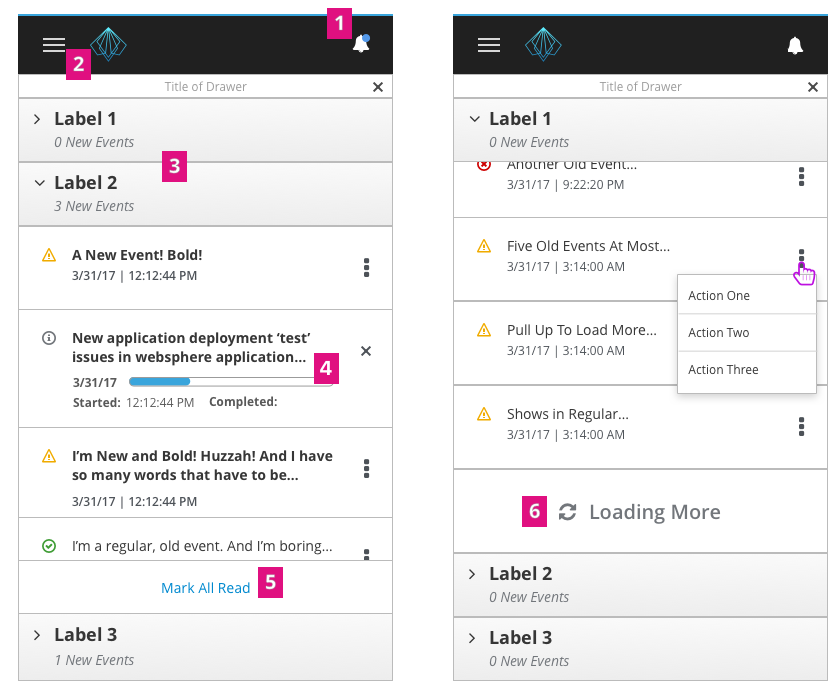

Notification Drawer | Responsive State
This is how the notification drawer looks on small screens. The icon of notification drawer is exposed on the navigation bar and the drawer will take over the whole screen width.
- Bell Icon: The bell remains in the banner, allowing the user to toggle the visibility of the notification drawer.
- Hamburger Icon: Since navigation is hidden under “hamburger” icon, clicking on the hamburger menu should first collapse the notification drawer (if visible), and then display the navigation menu.
- Accordion: When there are no new notifications, all the accordions are default to be collapsed.
- Complex Events: Individual rows may include additional information in complex events. User can tap on the event and full contents will show. If the event was unread, it will be marked as read at the same time. Tapping on the event again will collapse it. Tapping on another event will also lead to collapse it because only one event may be expanded at a given time.
- Mark All Read: After clicking “Mark All Read”, the link will be hidden until new unread notifications are available for reading.
- Loading More: User can scroll up and down within an accordion to view more events. It will load 10 events at a time by default. When scrolling to the bottom of the list, user can pull up to load more events.
Jump to Notification Drawer for Horizontal Navigation or Notification Drawer for Vertical Navigation

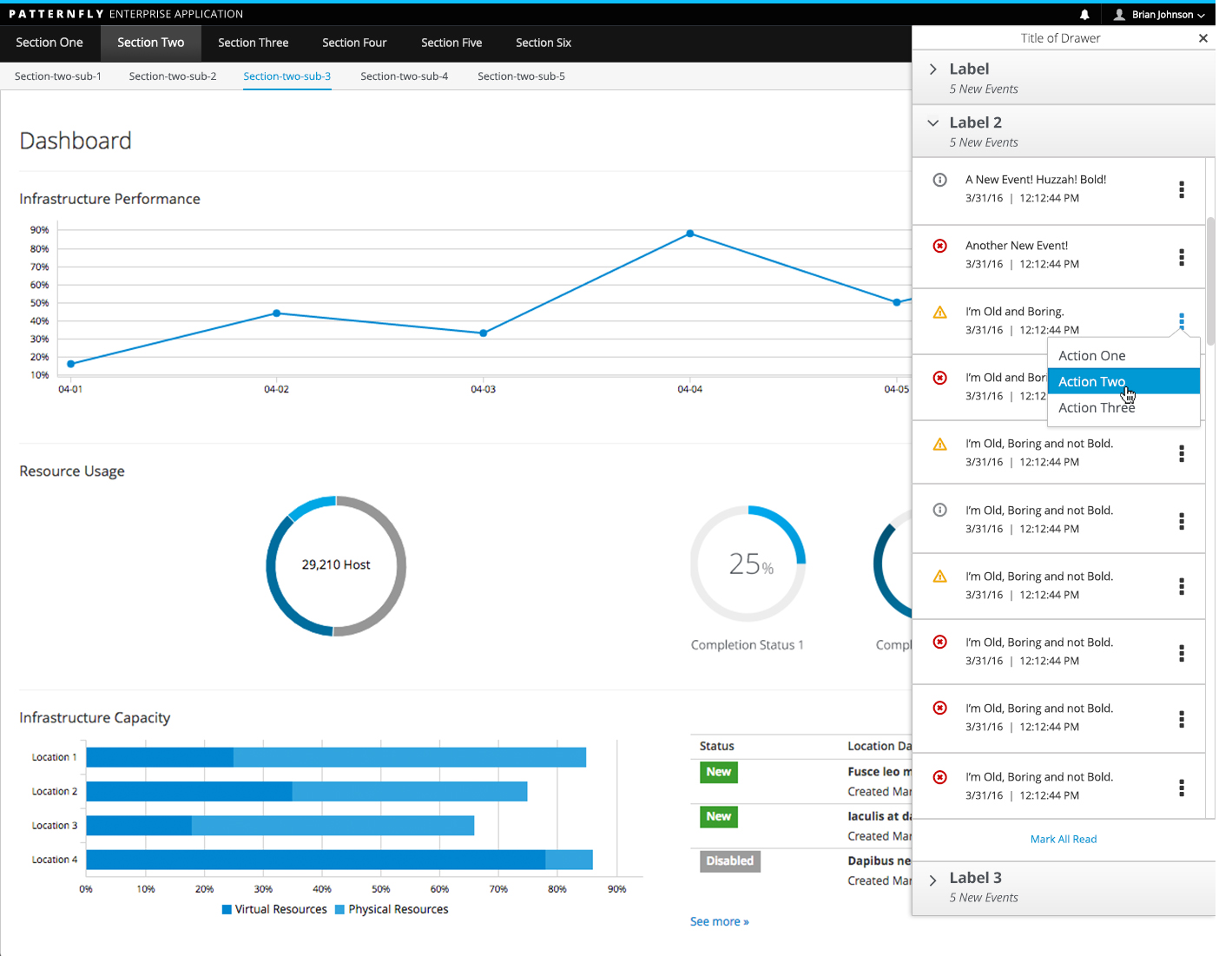

Notification Drawer for Horizontal Navigation
<html class="layout-pf layout-pf-fixed">
...
<nav class="navbar navbar-default navbar-pf" role="navigation">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse-1">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="/">
<img src="/patternfly-org/assets/img/brand.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<div class="collapse navbar-collapse navbar-collapse-1">
<ul class="nav navbar-nav navbar-utility">
<li class="dropdown">
<a href="#0" class="nav-item-iconic" id="horizontalDropdownMenu1" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="horizontalDropdownMenu1">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle" data-toggle="dropdown">
<span class="pficon pficon-user"></span>
Brian Johnson <b class="caret"></b>
</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-submenu">
<a tabindex="-1" href="#0">More options</a>
<ul class="dropdown-menu">
<li>
<a href="#0">Link</a>
</li>
<li>
<a href="#0">Another link</a>
</li>
<li>
<a href="#0">Something else here</a>
</li>
<li class="divider"></li>
<li class="dropdown-header">Nav header</li>
<li>
<a href="#0">Separated link</a>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
<li class="divider"></li>
<li>
<a href="#0">One more separated link</a>
</li>
</ul>
</li>
</ul>
<ul class="nav navbar-nav navbar-primary">
<li>
<a href="#0">First Link</a>
</li>
<li class="active">
<a href="#0">Another Link</a>
</li>
<li>
<a href="#0">And Another</a>
</li>
<li>
<a href="#0">As a General Rule</a>
</li>
<li>
<a href="#0">Five to Seven Links</a>
</li>
<li>
<a href="#0">Is Good</a>
</li>
</ul>
</div>
</nav>
<div class="container-fluid container-cards-pf" id="main">
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">20</span> Amet</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-warning-triangle-o"></span>1</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">9</span> Adipiscing</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">12</span> Lorem</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<span class="fa fa-rebel"></span>
<span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="fa fa-paper-plane"></span>
<span class="card-pf-aggregate-status-count">20</span> Amet
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-cluster"></span>
<span class="card-pf-aggregate-status-count">9</span> Adipiscing
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-image"></span>
<span class="card-pf-aggregate-status-count">12</span> Lorem
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Top Utilized Clusters
</h2>
</div>
<div class="card-pf-body">
<div class="progress-description">
RHOS6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-danger" role="progressbar" aria-valuenow="95" aria-valuemin="0" aria-valuemax="100" style="width: 95%;" data-toggle="tooltip" title="95% Used">
<span><strong>190.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="5" aria-valuemin="0" aria-valuemax="100" style="width: 5%;" data-toggle="tooltip" title="5% Available">
<span class="sr-only">5% Available</span>
</div>
</div>
<div class="progress-description">
CFMEQE-Cluster
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-success" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Used">
<span><strong>100.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Available">
<span class="sr-only">50% Available</span>
</div>
</div>
<div class="progress-description">
RHOS-Undercloud
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="70" aria-valuemin="0" aria-valuemax="100" style="width: 70%;" data-toggle="tooltip" title="70% Used">
<span><strong>140.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="30" aria-valuemin="0" aria-valuemax="100" style="width: 30%;" data-toggle="tooltip" title="30% Available">
<span class="sr-only">30% Available</span>
</div>
</div>
<div class="progress-description">
RHEL6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="76.5" aria-valuemin="0" aria-valuemax="100" style="width: 76.5%;" data-toggle="tooltip" title="76.5% Used">
<span><strong>153.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="23.5" aria-valuemin="0" aria-valuemax="100" style="width: 23.5%;" data-toggle="tooltip" title="23.5% Available">
<span class="sr-only">23.5% Available</span>
</div>
</div>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Quotas
</h2>
</div>
<div class="card-pf-body">
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
CPU
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100" style="width: 25%;" data-toggle="tooltip" title="25% Used">
<span><strong>115 of 460</strong> MHz</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100" style="width: 75%;" data-toggle="tooltip" title="75% Available">
<span class="sr-only">75% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Memory
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Used">
<span><strong>8 of 16</strong> GB</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Available">
<span class="sr-only">50% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Pods
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="62.5" aria-valuemin="0" aria-valuemax="100" style="width: 62.5%;" data-toggle="tooltip" title="62.5% Used">
<span><strong>5 of 8</strong> Total</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="37.5" aria-valuemin="0" aria-valuemax="100" style="width: 37.5%;" data-toggle="tooltip" title="37.5% Available">
<span class="sr-only">37.5% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Services
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100" style="width: 100%;" data-toggle="tooltip" title="100% Used">
<span><strong>2 of 2</strong> Total</span>
</div>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-md-12">
<div class="card-pf card-pf-utilization">
<div class="card-pf-heading">
<p class="card-pf-heading-details">Last 30 days</p>
<h2 class="card-pf-title">
Utilization
</h2>
</div>
<div class="card-pf-body">
<div class="row">
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">CPU</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">50</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1000 MHz</span>
</span>
</p>
<div id="chart-pf-donut-1"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-1"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-1';
donutConfig.color = {
pattern: ["#cc0000","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 95],
["Available", 5]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' MHz ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-1").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("950").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("MHz Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-1';
sparklineConfig.data = {
columns: [
['%', 10, 50, 28, 20, 31, 27, 60, 36, 52, 55, 62, 68, 69, 88, 74, 88, 95],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Memory</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">256</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 432 GB</span>
</span>
</p>
<div id="chart-pf-donut-2"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-2"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-2';
donutConfig.color = {
pattern: ["#3f9c35","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 41],
["Available", 59]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' GB ' + d[0].name +
'</span>';
}
};
var chart3 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-2").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("176").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("GB Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-2';
sparklineConfig.data = {
columns: [
['%', 35, 36, 20, 30, 31, 22, 44, 36, 40, 41, 55, 52, 48, 48, 50, 40, 41],
],
type: 'area'
};
var chart4 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Network</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-3"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-3"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-3';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart5 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-3").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-3';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart6 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-xs-12 col-sm-4 col-md-4">
<div class="card-pf card-pf-utilization">
<h2 class="card-pf-title">
Network
</h2>
<div class="card-pf-body">
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-4"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-4"></div>
<script>
var c3ChartDefaults = $().c3ChartDefaults();
var donutConfig = c3ChartDefaults.getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-4';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-4").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = c3ChartDefaults.getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-4';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-5">
<div class="card-pf">
<div class="card-pf-heading">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<h2 class="card-pf-title">
Card Title
</h2>
</div>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-add-circle-o"></span>Add New Cluster
</a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-5 col-md-5">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-flag"></span>View CPU Events
</a>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-7 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-8 col-md-8">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-4 col-md-4">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div><!-- /row -->
</div>
<script>
$(document).ready(function() {
// matchHeight the contents of each .card-pf and then the .card-pf itself
$(".row-cards-pf > [class*='col'] > .card-pf .card-pf-title").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-body").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-footer").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf").matchHeight();
// initialize tooltips
$('[data-toggle="tooltip"]').tooltip();
});
</script>
</html>
Notification Drawer for Vertical Navigation
<html class="layout-pf layout-pf-fixed">
...
<nav class="navbar navbar-pf-vertical">
<div class="navbar-header">
<button type="button" class="navbar-toggle">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a href="/" class="navbar-brand">
<img class="navbar-brand-icon" src="/patternfly-org/assets/img/logo-alt.svg" alt=""/><img class="navbar-brand-name" src="/patternfly-org/assets/img/brand-alt.svg" alt="PatternFly Enterprise Application" />
</a>
</div>
<nav class="collapse navbar-collapse">
<ul class="nav navbar-nav navbar-right navbar-iconic navbar-utility">
<li class="dropdown">
<a href="#0" class="dropdown-toggle nav-item-iconic" id="dropdownMenu1" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Help" class="fa pficon-help"></span>
<span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu1">
<li><a href="#0">Help</a></li>
<li><a href="#0">About</a></li>
</ul>
</li>
<li class="dropdown">
<a href="#0" class="dropdown-toggle nav-item-iconic" id="dropdownMenu2" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span title="Username" class="fa pficon-user"></span>
Brian Johnson <span class="caret"></span>
</a>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu2">
<li><a href="#0">Preferences</a></li>
<li><a href="#0">Logout</a></li>
</ul>
</li>
</ul>
</nav>
<div class="drawer-pf hide drawer-pf-notifications-non-clickable">
<div class="drawer-pf-title">
<a class="drawer-pf-toggle-expand fa fa-angle-double-left hidden-xs"></a>
<a class="drawer-pf-close pficon pficon-close"></a>
<h3 class="text-center">Notifications Drawer</h3>
</div>
<div class="panel-group" id="notification-drawer-accordion">
<div class="panel panel-default">
<div class="panel-heading" data-component="collapse-heading">
<h4 class="panel-title">
<a data-toggle="collapse" data-parent="#notification-drawer-accordion" href="#fixedCollapseOne">
Notification Tab 1
</a>
</h4>
<span class="panel-counter">5 New Events</span>
</div>
<div id="fixedCollapseOne" class="panel-collapse collapse in">
<div class="panel-body">
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight11" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight11">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight21" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight21">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight31" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight31">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight41" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight41">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
</div>
<div class="blank-slate-pf hidden">
<div class="blank-slate-pf-icon">
<span class="pficon-info"></span>
</div>
<h1>There are no notifications to display.</h1>
</div>
<div class="drawer-pf-action">
<div class="drawer-pf-action-link" data-toggle="mark-all-read">
<button class="btn btn-link">Mark All Read</button>
</div>
<div class="drawer-pf-action-link" data-toggle="clear-all">
<button class="btn btn-link">
<span class="pficon pficon-close"></span>
Clear All
</button>
</div>
</div>
</div>
</div>
<div class="panel panel-default">
<div class="panel-heading" data-component="collapse-heading">
<h4 class="panel-title">
<a class="collapsed" data-toggle="collapse" data-parent="#notification-drawer-accordion" href="#fixedCollapseTwo">
Notification Tab 2
</a>
</h4>
<span class="panel-counter">5 New Events</span>
</div>
<div id="fixedCollapseTwo" class="panel-collapse collapse">
<div class="panel-body">
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight12" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight12">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight22" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight22">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight32" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight32">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight42" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight42">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight13" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight13">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight23" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight23">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight33" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight33">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight43" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight43">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight14" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight14">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight24" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight24">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight34" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight34">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight44" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight44">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-loading text-center">
<span class="spinner spinner-xs spinner-inline"></span> Loading More
</div>
</div>
<div class="blank-slate-pf hidden">
<div class="blank-slate-pf-icon">
<span class="pficon-info"></span>
</div>
<h1>There are no notifications to display.</h1>
</div>
<div class="drawer-pf-action">
<div class="drawer-pf-action-link" data-toggle="mark-all-read">
<button class="btn btn-link">Mark All Read</button>
</div>
<div class="drawer-pf-action-link" data-toggle="clear-all">
<button class="btn btn-link">
<span class="pficon pficon-close"></span>
Clear All
</button>
</div>
</div>
</div>
</div>
<div class="panel panel-default">
<div class="panel-heading" data-component="collapse-heading">
<h4 class="panel-title">
<a class="collapsed" data-toggle="collapse" data-parent="#notification-drawer-accordion" href="#fixedCollapseThree">
Notification Tab 3
</a>
</h4>
<span class="panel-counter">5 New Events</span>
</div>
<div id="fixedCollapseThree" class="panel-collapse collapse">
<div class="panel-body">
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight15" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight15">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight25" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight25">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight35" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight35">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight45" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight45">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight16" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight16">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight26" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight26">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight36" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight36">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight46" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight46">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight17" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight17">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-info pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">A New Event! Huzzah! Bold!</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification unread">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight27" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight27">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-ok pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight37" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight37">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-warning-triangle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification that is really long to see how it reacts on smaller screens sizes.</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
<div class="drawer-pf-notification">
<div class="dropdown pull-right dropdown-kebab-pf">
<button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebabRight47" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
<span class="fa fa-ellipsis-v"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" aria-labelledby="dropdownKebabRight47">
<li><a href="#">Action</a></li>
<li><a href="#">Another Action</a></li>
<li><a href="#">Something Else Here</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">Separated Link</a></li>
</ul>
</div>
<span class="pficon pficon-error-circle-o pull-left"></span>
<div class="drawer-pf-notification-content">
<span class="drawer-pf-notification-message">Another Event Notification</span>
<div class="drawer-pf-notification-info">
<span class="date">3/31/16</span>
<span class="time">12:12:44 PM</span>
</div>
</div>
</div>
</div>
<div class="blank-slate-pf hidden">
<div class="blank-slate-pf-icon">
<span class="pficon-info"></span>
</div>
<h1>There are no notifications to display.</h1>
</div>
<div class="drawer-pf-action">
<div class="drawer-pf-action-link" data-toggle="mark-all-read">
<button class="btn btn-link">Mark All Read</button>
</div>
<div class="drawer-pf-action-link" data-toggle="clear-all">
<button class="btn btn-link">
<span class="pficon pficon-close"></span>
Clear All
</button>
</div>
</div>
</div>
</div>
</div>
</div>
<script>
$(document).ready(function() {
// Initialize to unread notifications
// TODO: add badge for unread notifications
// Show/Hide Notifications Drawer
$('.drawer-pf-trigger').click(function() {
var $drawer = $('.drawer-pf');
$(this).toggleClass('open');
if ($drawer.hasClass('hide')) {
$drawer.removeClass('hide');
setTimeout(function () {
if (window.dispatchEvent) {
window.dispatchEvent(new Event('resize'));
}
// Special case for IE
if ($(document).fireEvent) {
$(document).fireEvent('onresize');
}
}, 100);
} else {
$drawer.addClass('hide');
}
// Special case, close navigation menu in mobile mode
if ($('.container-pf-nav-pf-vertical').hasClass('hidden-nav')) {
$('.nav-pf-vertical').removeClass('show-mobile-nav');
}
});
$('.drawer-pf-close').click(function() {
var $drawer = $('.drawer-pf');
$('.drawer-pf-trigger').removeClass('open');
$drawer.addClass('hide');
});
$('.drawer-pf-toggle-expand').click(function() {
var $drawer = $('.drawer-pf');
var $drawerNotifications = $drawer.find('.drawer-pf-notification');
if ($drawer.hasClass('drawer-pf-expanded')) {
$drawer.removeClass('drawer-pf-expanded');
$drawerNotifications.removeClass('expanded-notification');
} else {
$drawer.addClass('drawer-pf-expanded');
$drawerNotifications.addClass('expanded-notification');
}
});
// Mark All Read / Clear All
$('.panel-collapse').each(function (index, panel) {
var $panel = $(panel);
var unreadCount = $panel.find('.drawer-pf-notification.unread').length;
$(panel.parentElement).find('.panel-counter').text(unreadCount + ' New Event' + (unreadCount !== 1 ? 's' : ''));
if ($('.drawer-pf .panel-collapse .unread').length === 0) {
// TODO: remove badge for unread indicator
}
$panel.on('click', '.drawer-pf-action [data-toggle="mark-all-read"] .btn', function() {
$panel.find('.unread').removeClass('unread');
$panel.find('.drawer-pf-action [data-toggle="mark-all-read"]').remove();
$(panel.parentElement).find('.panel-counter').text('0 New Events');
if ($('.drawer-pf .panel-collapse .unread').length === 0) {
$('.drawer-pf-trigger').removeClass('unread');
}
});
$panel.on('click', '.drawer-pf-action [data-toggle="clear-all"] .btn', function() {
$panel.find('.panel-body .drawer-pf-notification').remove();
$panel.find('.drawer-pf-action').remove();
$panel.find('.blank-slate-pf').removeClass('hidden');
$panel.find('.drawer-pf-loading').addClass('hidden');
$(panel.parentElement).find('.panel-counter').text('0 New Events');
if ($('.drawer-pf .panel-collapse .unread').length === 0) {
// TODO: remove badge for unread indicator
}
});
$panel.find('.drawer-pf-notification').each(function (index, notification) {
var $notification = $(notification);
$notification.on('click', '.drawer-pf-notification-content', function() {
$notification.removeClass('unread');
var unreadCount = $panel.find('.drawer-pf-notification.unread').length;
$(panel.parentElement).find('.panel-counter').text(unreadCount + ' New Event' + (unreadCount !== 1 ? 's' : ''));
if (unreadCount === 0) {
$panel.find('.drawer-pf-action [data-toggle="mark-all-read"]').remove();
if ($('.drawer-pf .panel-collapse .unread').length === 0) {
// TODO: remove badge for unread indicator
}
}
});
});
});
$('#notification-drawer-accordion').initCollapseHeights('.panel-body');
});
</script>
</nav> <!--/.navbar-->
<div class="nav-pf-vertical nav-pf-vertical-with-sub-menus
">
<ul class="list-group">
<li class="list-group-item">
<a href="#0">
<span class="fa fa-dashboard" data-toggle="tooltip" title="Dashboard"></span>
<span class="list-group-item-value">Dashboard</span>
</a>
</li>
<li class="list-group-item">
<a href="#0">
<span class="fa fa-shield" data-toggle="tooltip" title="Dolor"></span>
<span class="list-group-item-value">Dolor</span>
</a>
</li>
<li class="list-group-item active " data-target="#ipsum-secondary">
<a href="#0">
<span class="fa fa-space-shuttle" data-toggle="tooltip" title="Ipsum"></span>
<span class="list-group-item-value">Ipsum</span>
</a>
</li>
<li class="list-group-item " data-target="#amet-secondary">
<a href="#0">
<span class="fa fa-paper-plane" data-toggle="tooltip" title="Amet"></span>
<span class="list-group-item-value">Amet</span>
</a>
</li>
<li class="list-group-item">
<a href="#0">
<span class="fa fa-graduation-cap" data-toggle="tooltip" title="Adipscing"></span>
<span class="list-group-item-value">Adipscing</span>
</a>
</li>
<li class="list-group-item">
<a href="#0">
<span class="fa fa-gamepad" data-toggle="tooltip" title="Lorem"></span>
<span class="list-group-item-value">Lorem</span>
</a>
</li>
<li class="list-group-item secondary-nav-item-pf mobile-nav-item-pf visible-xs-block">
<a href="#0">
<span class="pficon pficon-user" data-toggle="tooltip" title="" data-original-title="User"></span>
<span class="list-group-item-value">User</span>
</a>
<div id="user-secondary" class="nav-pf-secondary-nav">
<div class="nav-item-pf-header">
<a href="#0" class="secondary-collapse-toggle-pf" data-toggle="collapse-secondary-nav"></a>
<span>User</span>
</div>
<ul class="list-group">
<li class="list-group-item">
<a href="#0">
<span class="list-group-item-value">Preferences</span>
</a>
</li>
<li class="list-group-item">
<a href="#0">
<span class="list-group-item-value">Logout</span>
</a>
</li>
</ul>
</div>
</li>
<li class="list-group-item secondary-nav-item-pf mobile-nav-item-pf visible-xs-block" data-target="#amet-secondary">
<a href="#0">
<span class="pficon pficon-help" data-toggle="tooltip" title="" data-original-title="Help"></span>
<span class="list-group-item-value">Help</span>
</a>
<div id="help-secondary" class="nav-pf-secondary-nav">
<div class="nav-item-pf-header">
<a href="#0" class="secondary-collapse-toggle-pf" data-toggle="collapse-secondary-nav"></a>
<span>Help</span>
</div>
<ul class="list-group">
<li class="list-group-item">
<a href="#0">
<span class="list-group-item-value">Help</span>
</a>
</li>
<li class="list-group-item">
<a href="#0">
<span class="list-group-item-value">About</span>
</a>
</li>
</ul>
</div>
</li>
</ul>
</div>
<div class="container-fluid container-cards-pf container-pf-nav-pf-vertical
">
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">20</span> Amet</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-warning-triangle-o"></span>1</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">9</span> Adipiscing</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status">
<h2 class="card-pf-title">
<a href="#"><span class="fa fa-shield"></span><span class="card-pf-aggregate-status-count">12</span> Lorem</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<span class="fa fa-rebel"></span>
<span class="card-pf-aggregate-status-count">0</span> Ipsum
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#" class="add" data-toggle="tooltip" data-placement="top" title="Add Ipsum"><span class="pficon pficon-add-circle-o"></span></a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="fa fa-paper-plane"></span>
<span class="card-pf-aggregate-status-count">20</span> Amet
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><a href="#"><span class="pficon pficon-error-circle-o"></span>4</a></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-cluster"></span>
<span class="card-pf-aggregate-status-count">9</span> Adipiscing
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<span class="card-pf-aggregate-status-notification"><span class="pficon pficon-ok"></span></span>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-3">
<div class="card-pf card-pf-accented card-pf-aggregate-status card-pf-aggregate-status-mini">
<h2 class="card-pf-title">
<a href="#">
<span class="pficon pficon-image"></span>
<span class="card-pf-aggregate-status-count">12</span> Lorem
</a>
</h2>
<div class="card-pf-body">
<p class="card-pf-aggregate-status-notifications">
<a href="#"><span class="card-pf-aggregate-status-notification"><span class="pficon pficon-error-circle-o"></span>1</span></a>
</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Top Utilized Clusters
</h2>
</div>
<div class="card-pf-body">
<div class="progress-description">
RHOS6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-danger" role="progressbar" aria-valuenow="95" aria-valuemin="0" aria-valuemax="100" style="width: 95%;" data-toggle="tooltip" title="95% Used">
<span><strong>190.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="5" aria-valuemin="0" aria-valuemax="100" style="width: 5%;" data-toggle="tooltip" title="5% Available">
<span class="sr-only">5% Available</span>
</div>
</div>
<div class="progress-description">
CFMEQE-Cluster
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-success" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Used">
<span><strong>100.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="50% Available">
<span class="sr-only">50% Available</span>
</div>
</div>
<div class="progress-description">
RHOS-Undercloud
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="70" aria-valuemin="0" aria-valuemax="100" style="width: 70%;" data-toggle="tooltip" title="70% Used">
<span><strong>140.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="30" aria-valuemin="0" aria-valuemax="100" style="width: 30%;" data-toggle="tooltip" title="30% Available">
<span class="sr-only">30% Available</span>
</div>
</div>
<div class="progress-description">
RHEL6-Controller
</div>
<div class="progress progress-label-top-right">
<div class="progress-bar progress-bar-warning" role="progressbar" aria-valuenow="76.5" aria-valuemin="0" aria-valuemax="100" style="width: 76.5%;" data-toggle="tooltip" title="76.5% Used">
<span><strong>153.0 of 200.0 GB</strong> Used</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="23.5" aria-valuemin="0" aria-valuemax="100" style="width: 23.5%;" data-toggle="tooltip" title="23.5% Available">
<span class="sr-only">23.5% Available</span>
</div>
</div>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6">
<div class="card-pf">
<div class="card-pf-heading">
<h2 class="card-pf-title">
Quotas
</h2>
</div>
<div class="card-pf-body">
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
CPU
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100" style="width: 25%;" data-toggle="tooltip" title="25% Used">
<span><strong>115 of 460</strong> MHz</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100" style="width: 75%;" data-toggle="tooltip" title="75% Available">
<span class="sr-only">75% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Memory
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Used">
<span><strong>8 of 16</strong> GB</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100" style="width: 50%;" data-toggle="tooltip" title="8 GB Available">
<span class="sr-only">50% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Pods
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="62.5" aria-valuemin="0" aria-valuemax="100" style="width: 62.5%;" data-toggle="tooltip" title="62.5% Used">
<span><strong>5 of 8</strong> Total</span>
</div>
<div class="progress-bar progress-bar-remaining" role="progressbar" aria-valuenow="37.5" aria-valuemin="0" aria-valuemax="100" style="width: 37.5%;" data-toggle="tooltip" title="37.5% Available">
<span class="sr-only">37.5% Available</span>
</div>
</div>
</div>
<div class="progress-container progress-description-left progress-label-right">
<div class="progress-description">
Services
</div>
<div class="progress">
<div class="progress-bar" role="progressbar" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100" style="width: 100%;" data-toggle="tooltip" title="100% Used">
<span><strong>2 of 2</strong> Total</span>
</div>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-md-12">
<div class="card-pf card-pf-utilization">
<div class="card-pf-heading">
<p class="card-pf-heading-details">Last 30 days</p>
<h2 class="card-pf-title">
Utilization
</h2>
</div>
<div class="card-pf-body">
<div class="row">
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">CPU</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">50</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1000 MHz</span>
</span>
</p>
<div id="chart-pf-donut-1"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-1"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-1';
donutConfig.color = {
pattern: ["#cc0000","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 95],
["Available", 5]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' MHz ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-1").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("950").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("MHz Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-1';
sparklineConfig.data = {
columns: [
['%', 10, 50, 28, 20, 31, 27, 60, 36, 52, 55, 62, 68, 69, 88, 74, 88, 95],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Memory</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">256</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 432 GB</span>
</span>
</p>
<div id="chart-pf-donut-2"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-2"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-2';
donutConfig.color = {
pattern: ["#3f9c35","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 41],
["Available", 59]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' GB ' + d[0].name +
'</span>';
}
};
var chart3 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-2").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("176").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("GB Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-2';
sparklineConfig.data = {
columns: [
['%', 35, 36, 20, 30, 31, 22, 44, 36, 40, 41, 55, 52, 48, 48, 50, 40, 41],
],
type: 'area'
};
var chart4 = c3.generate(sparklineConfig);
</script>
</div>
<div class="col-xs-12 col-sm-4 col-md-4">
<h3 class="card-pf-subtitle">Network</h3>
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-3"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-3"></div>
<script>
var donutConfig = $().c3ChartDefaults().getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-3';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart5 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-3").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = $().c3ChartDefaults().getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-3';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart6 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<div class="col-xs-12 col-sm-4 col-md-4">
<div class="card-pf card-pf-utilization">
<h2 class="card-pf-title">
Network
</h2>
<div class="card-pf-body">
<p class="card-pf-utilization-details">
<span class="card-pf-utilization-card-details-count">200</span>
<span class="card-pf-utilization-card-details-description">
<span class="card-pf-utilization-card-details-line-1">Available</span>
<span class="card-pf-utilization-card-details-line-2">of 1300 Gbps</span>
</span>
</p>
<div id="chart-pf-donut-4"></div>
<div class="chart-pf-sparkline" id="chart-pf-sparkline-4"></div>
<script>
var c3ChartDefaults = $().c3ChartDefaults();
var donutConfig = c3ChartDefaults.getDefaultDonutConfig('A');
donutConfig.bindto = '#chart-pf-donut-4';
donutConfig.color = {
pattern: ["#EC7A08","#D1D1D1"]
};
donutConfig.data = {
type: "donut",
columns: [
["Used", 85],
["Available", 15]
],
groups: [
["used", "available"]
],
order: null
};
donutConfig.tooltip = {
contents: function (d) {
return '<span class="donut-tooltip-pf" style="white-space: nowrap;">' +
Math.round(d[0].ratio * 100) + '%' + ' Gbps ' + d[0].name +
'</span>';
}
};
var chart1 = c3.generate(donutConfig);
var donutChartTitle = d3.select("#chart-pf-donut-4").select('text.c3-chart-arcs-title');
donutChartTitle.text("");
donutChartTitle.insert('tspan').text("1100").classed('donut-title-big-pf', true).attr('dy', 0).attr('x', 0);
donutChartTitle.insert('tspan').text("Gbps Used").classed('donut-title-small-pf', true).attr('dy', 20).attr('x', 0);
var sparklineConfig = c3ChartDefaults.getDefaultSparklineConfig();
sparklineConfig.bindto = '#chart-pf-sparkline-4';
sparklineConfig.data = {
columns: [
['%', 60, 55, 70, 44, 31, 67, 54, 46, 58, 75, 62, 68, 69, 88, 74, 88, 85],
],
type: 'area'
};
var chart2 = c3.generate(sparklineConfig);
</script>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-6 col-md-5">
<div class="card-pf">
<div class="card-pf-heading">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<h2 class="card-pf-title">
Card Title
</h2>
</div>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-6 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-add-circle-o"></span>Add New Cluster
</a>
</p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-12 col-sm-5 col-md-5">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<div class="dropdown card-pf-time-frame-filter">
<button type="button" class="btn btn-default dropdown-toggle" data-toggle="dropdown">
Last 30 Days <span class="caret"></span>
</button>
<ul class="dropdown-menu dropdown-menu-right" role="menu">
<li class="selected"><a href="#">Last 30 Days</a></li>
<li><a href="#">Last 60 Days</a></li>
<li><a href="#">Last 90 Days</a></li>
</ul>
</div>
<p>
<a href="#" class="card-pf-link-with-icon">
<span class="pficon pficon-flag"></span>View CPU Events
</a>
</p>
</div>
</div>
</div>
<div class="col-xs-12 col-sm-7 col-md-7">
<div class="card-pf">
<h2 class="card-pf-title">
Card Title
</h2>
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div>
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-8 col-md-8">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-4 col-md-4">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
<div class="card-pf-footer">
<p><a href="#">Footer link</a></p>
</div>
</div>
</div>
</div><!-- /row -->
<div class="row row-cards-pf">
<!-- Important: if you need to nest additional .row within a .row.row-cards-pf, do *not* use .row-cards-pf on the nested .row -->
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
<div class="col-xs-6 col-sm-6 col-md-6">
<div class="card-pf">
<div class="card-pf-body">
<p>[card contents]</p>
</div>
</div>
</div>
</div><!-- /row -->
</div>
<script>
$(document).ready(function() {
// matchHeight the contents of each .card-pf and then the .card-pf itself
$(".row-cards-pf > [class*='col'] > .card-pf .card-pf-title").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-body").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf > .card-pf-footer").matchHeight();
$(".row-cards-pf > [class*='col'] > .card-pf").matchHeight();
// Initialize the vertical navigation
$().setupVerticalNavigation(true);
});
</script>
</html>
